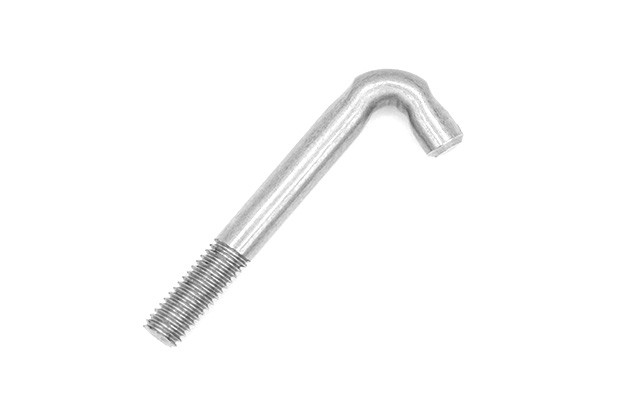

Hook for hybrid stabilization system
Stabilizing hook used to lock the malleable bar at its ends, connecting it to the linear and circular elements
The hybrid frame constructs feasible with the Universal fixator can be stabilized thanks to an exclusive feature of the system, defined as sail mounting, which uses the use of a malleable bar connected to the linear and circular elements with specially designed hooks. The stabilizing hook is then used to lock the malleable bar at its ends, connecting it to the linear and circular elements in order to obtain a triangular shape of great mechanical stability. It can be used in conjunction with the malleable bar code B00010008A, the orthogonal rails, the inclinable rails and the rings.
Data sheet
Diametro | 3,0 mm |
---|---|
Lunghezza | 16,5 mm |
Hook lenght | 5,0 mm |
